EJERCICIO 5

Description

Problem 1. Module 23-1 from Resnick – Halliday – Walker. Tenth Edition. Page 679.

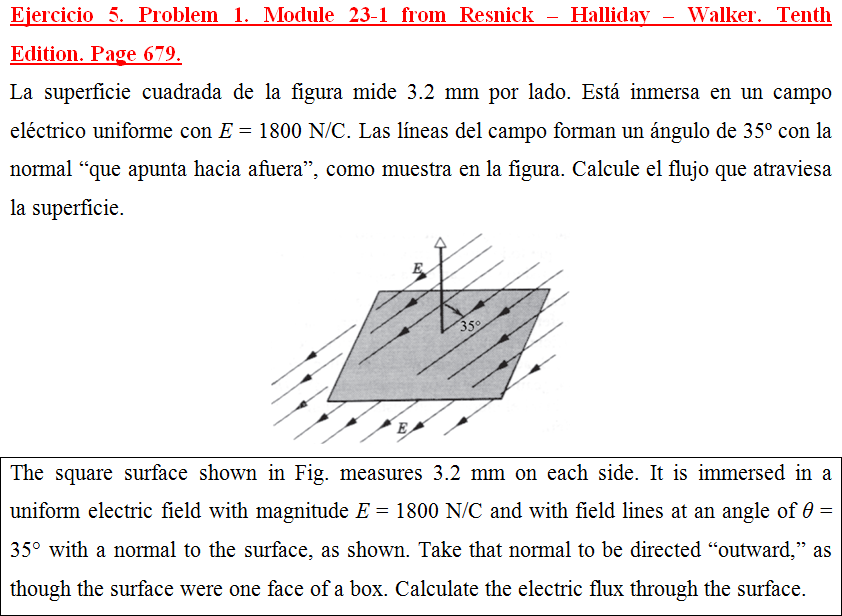

La superficie cuadrada de la figura mide 3.2 mm por lado. Está inmersa en un campo eléctrico uniforme con E = 1800 N/C. Las líneas del campo forman un ángulo de 35º con la normal “que apunta hacia afuera”, como muestra en la figura. Calcule el flujo que atraviesa la superficie.

The square surface shown in Fig. measures 3.2 mm on each side. It is immersed in a uniform electric field with magnitude E = 1800 N/C and with field lines at an angle of θ = 35° with a normal to the surface, as shown. Take that normal to be directed “outward,” as though the surface were one face of a box. Calculate the electric flux through the surface.
